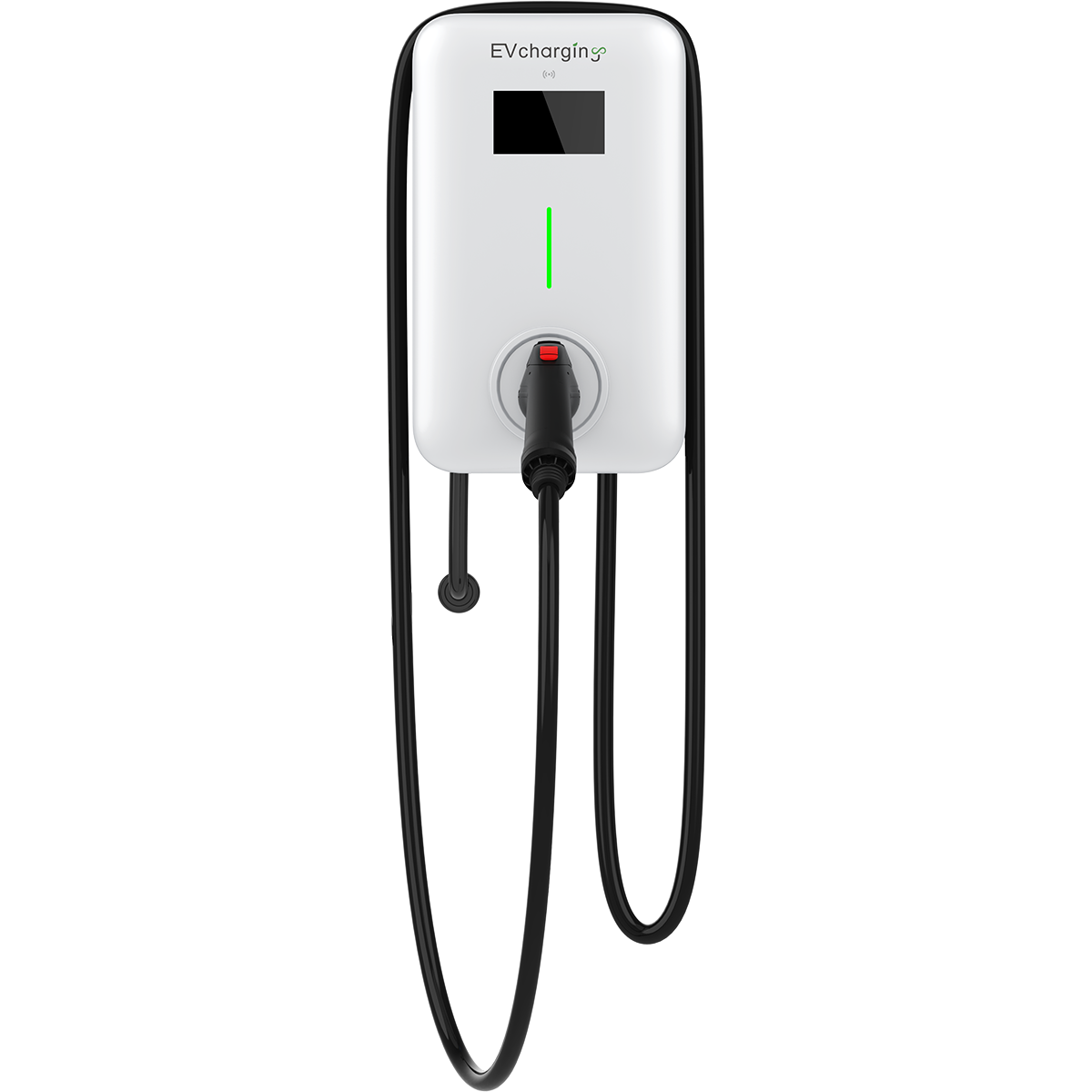

A non-networked electric vehicle charger with custom configuration capabilities offers both users and infrastructure operators flexible EV charging functionality. Operate independently from external networks without sacrificing useful features.
Features
LCD Touchscreen
Power output adjustable on device.
Dedicated mobile app.
RFID authentication available.
NEMA 14-50/6-50 installation
| Categories | Parameters |
| Voltage | 208-240Vac |
| Amperage/Power | 32A/7.6kW 40A/9.6KW 48A/11.5KW |
| AC Power Frequency | 50-60Hz |
| Display | 4.3″LCD |
| User Authentication | RFID ISO14443 |
| Connectivity | LAN, WIFI, Bluetooth Standard, 4G optional；OCPP1.6J / Upgradable to OCPP2.0.1 |
| Material | PC |
| Operating Temperature | -20°C to 55°C |
| IP Level | Nema4 |
| IK Rating | IK10/IK08 Screen |
| Cable Length | Standard: 5 m; Optional: 7 m |
| Standards | SAE J1772, UL2594, UL2231-1, UL2231-2, UL199 |
| Residual Current Detection | Over Current, Short Circuit, Surge Protection Leakage ,Current Protection |
| Dimensions (H*W*D) | 395 x 235 x 110 mm |
| Operation temperature | -30°C to 50°C |
| Certification | UL,ENERGY STAR, RoHS |
